T568B: color order and consistent termination

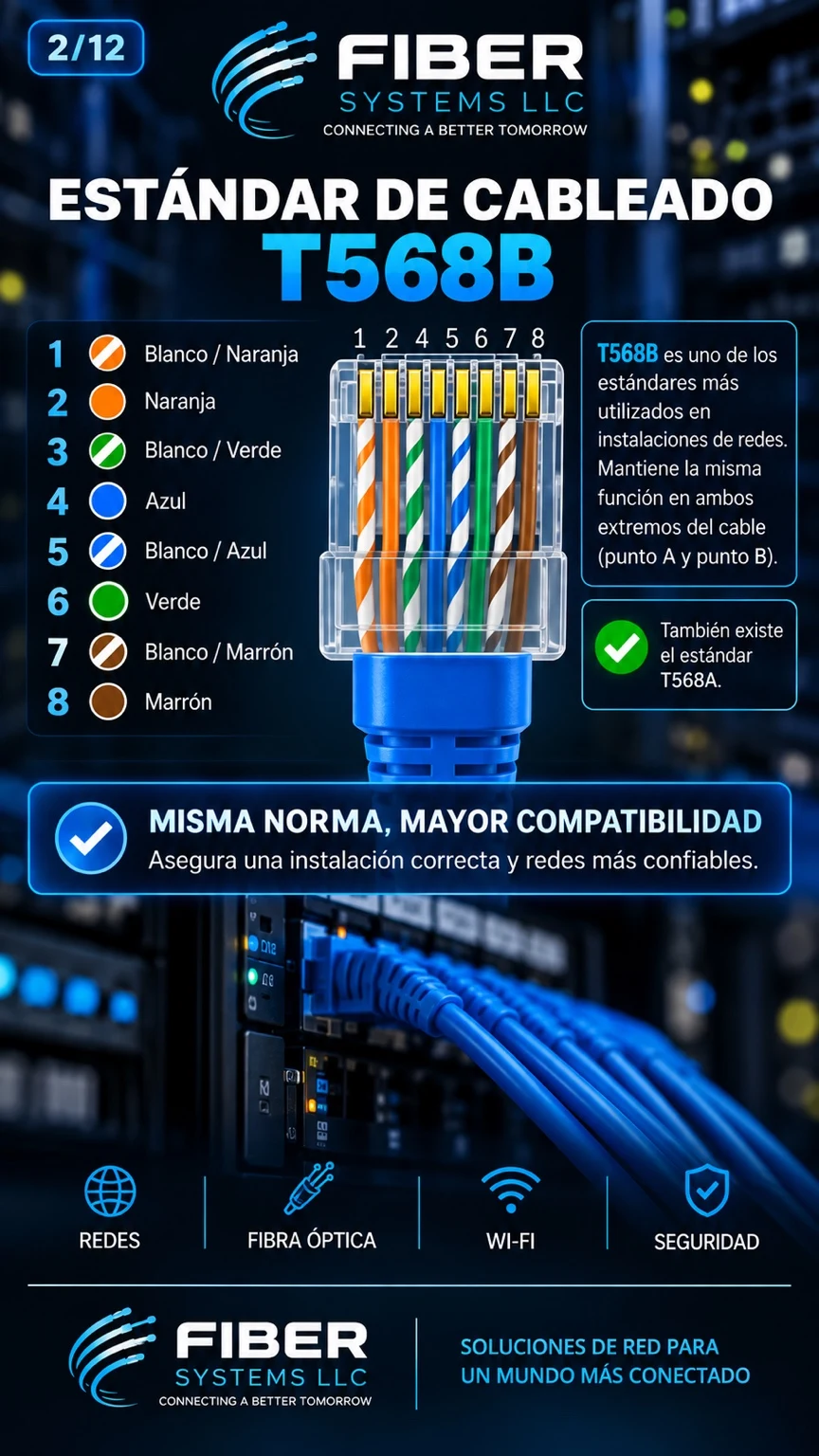

The infographic shows the color assignment for the eight positions of a T568B termination.
What the image shows
The infographic shows the color assignment for the eight positions of a T568B termination.
How to interpret it
From 1 to 8: white/orange, orange, white/green, blue, white/blue, green, white/brown and brown. Confirm connector orientation and numbering before interpreting an illustration.
What to check before installation
T568A also exists. For a straight-through link, follow the specified scheme consistently at both ends and check the wire map. Visual color order is not a substitute for testing.
