Splicing · VISUAL GUIDE
Understanding a fusion splicer display
Alignment images and machine warnings help evaluate the splicing process.
What appears on the screen

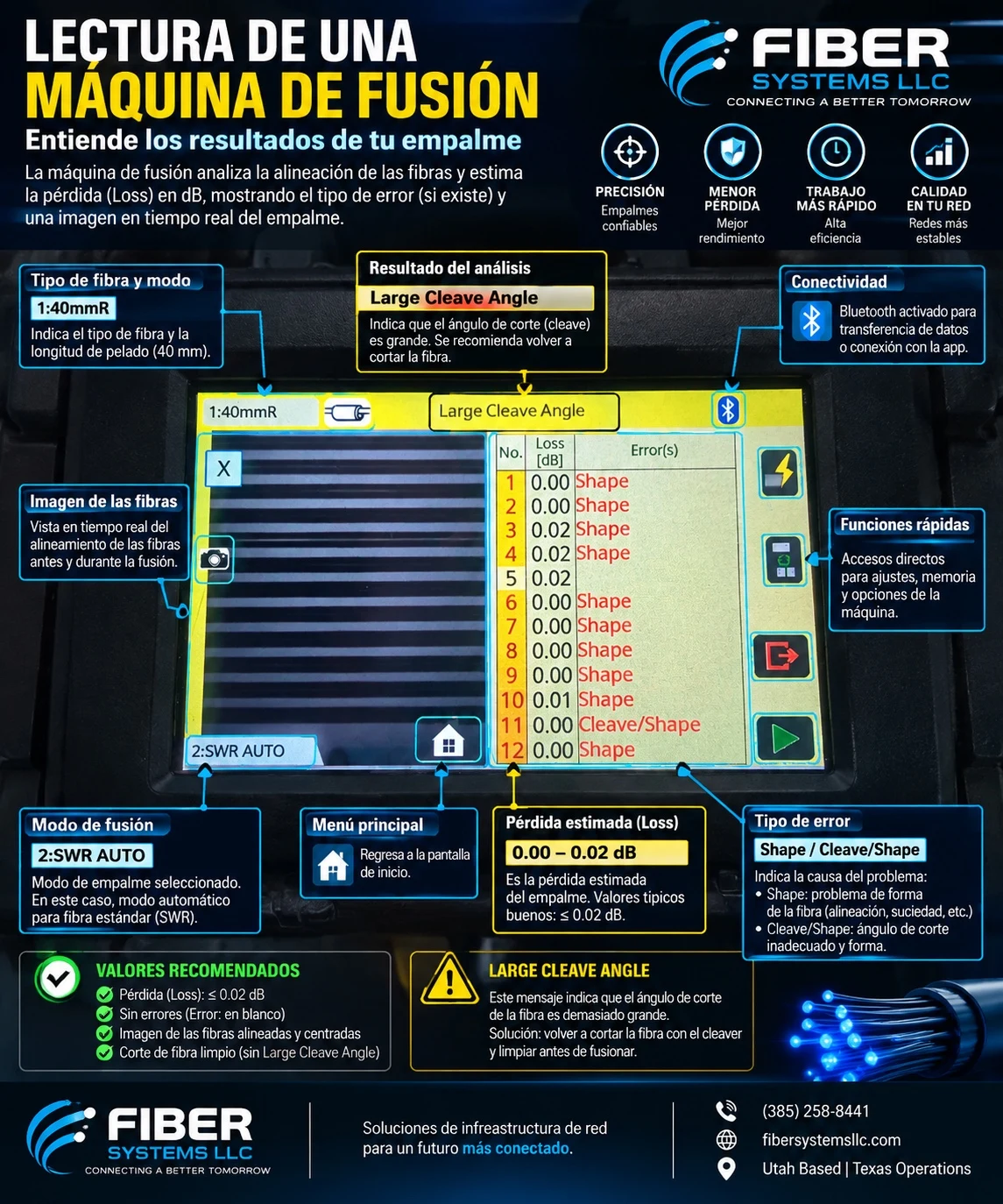

The infographic highlights fiber views, splice mode and estimated loss. It also points to a cleave-angle warning. These are machine process indicators, not a complete report for the installed link.
An estimate is not a measurement
The loss displayed by a fusion splicer is an estimate. Link acceptance must follow project test requirements using the appropriate instruments and criteria.
Responding to a warning
Check its meaning in the specific model's manual before continuing. Preparation, cleaving, cleaning and placement can affect the process. Alarm limits depend on configuration and should not be copied from someone else's screenshot.
