PA-5410: recognizing firewall interfaces

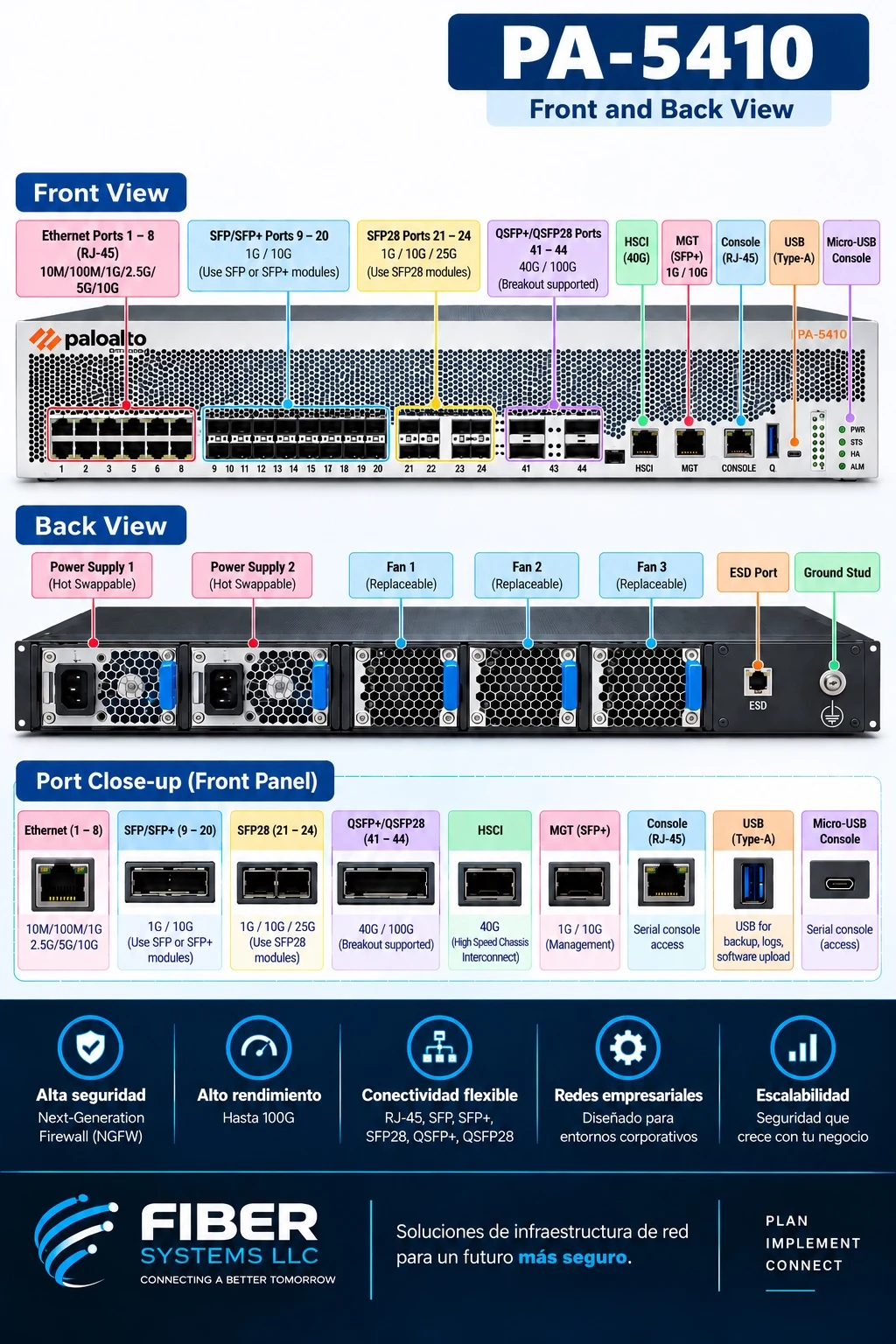

The infographic shows front and rear views of a Palo Alto Networks firewall and identifies connections and components.
What the image shows
The infographic shows front and rear views of a Palo Alto Networks firewall and identifies connections and components.
How to interpret it
Traffic, management, console and high-availability ports serve different roles. An available socket does not mean every cable or transceiver is compatible.
What to check before installation
Before planning connections, confirm the model, supported interfaces and official documentation. Design must also consider power, airflow and maintenance access. This educational article does not imply vendor certification.
