Eight conductors, four pairs: understanding Ethernet cable

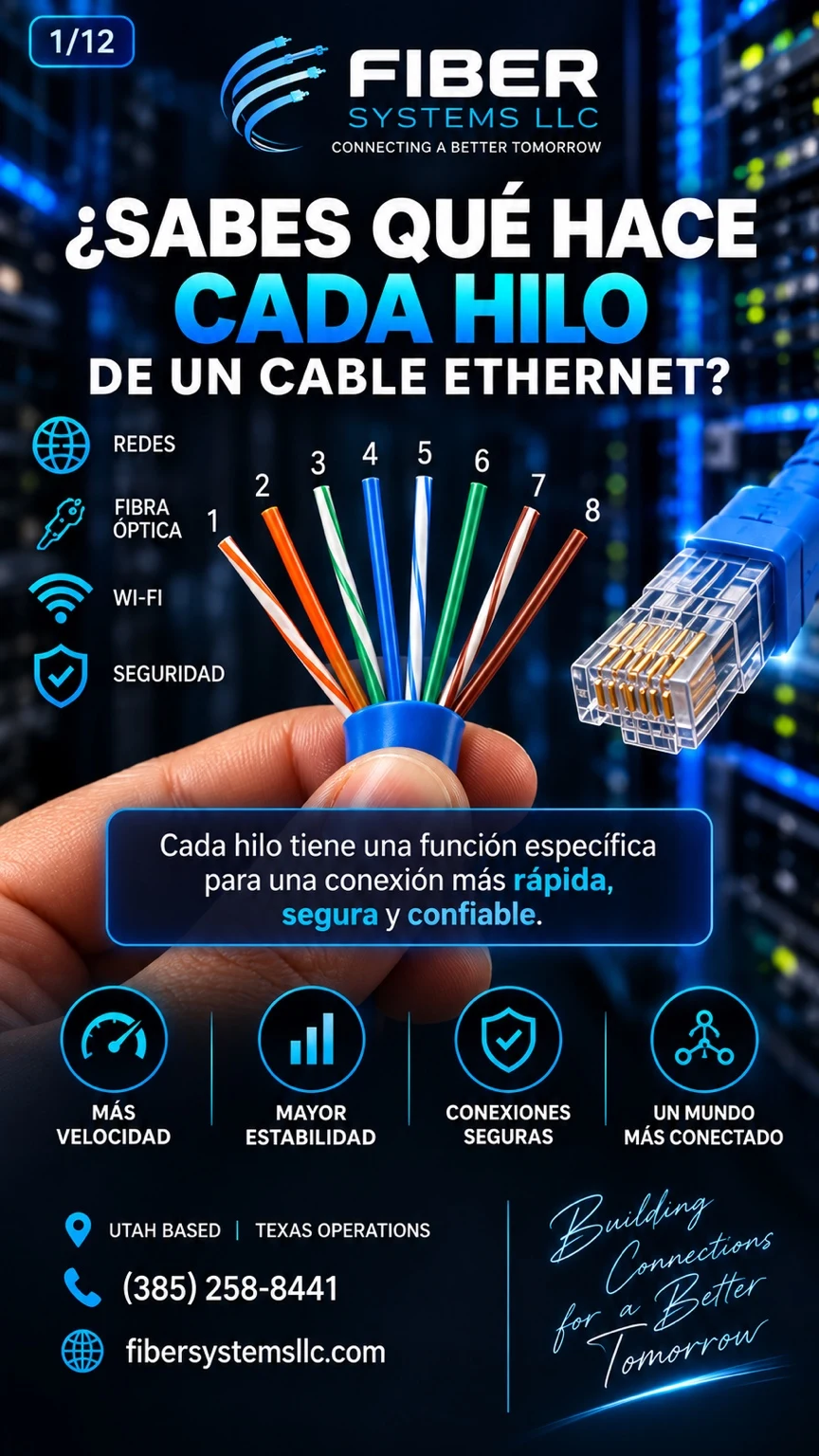

The image visually separates the eight conductors of a twisted-pair cable to show their colors.
What the image shows
The image visually separates the eight conductors of a twisted-pair cable to show their colors.
How to interpret it
Conductors work as pairs. Preserving pair membership and the termination scheme is essential; apparent continuity does not always identify a split pair.
What to check before installation
Use the photo to recognize the structure, not as a recommended untwist length. Preparation must follow connector instructions and link requirements.
